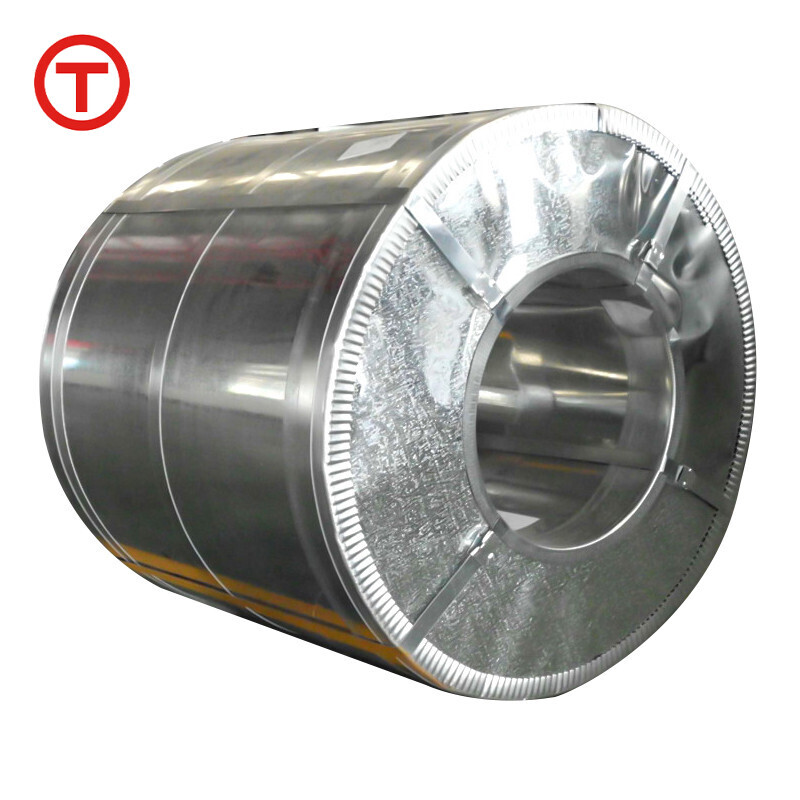

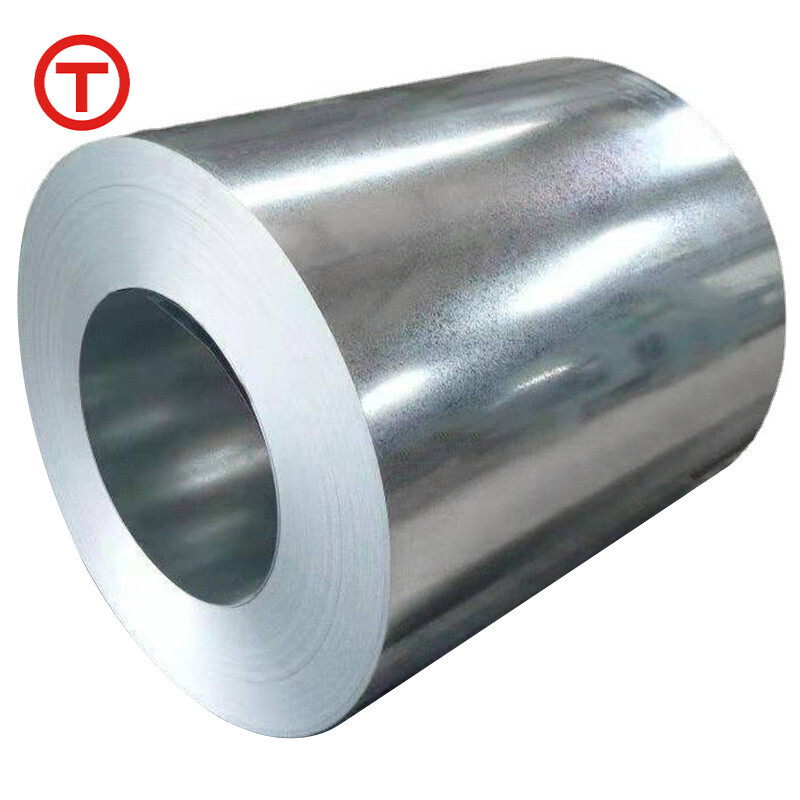

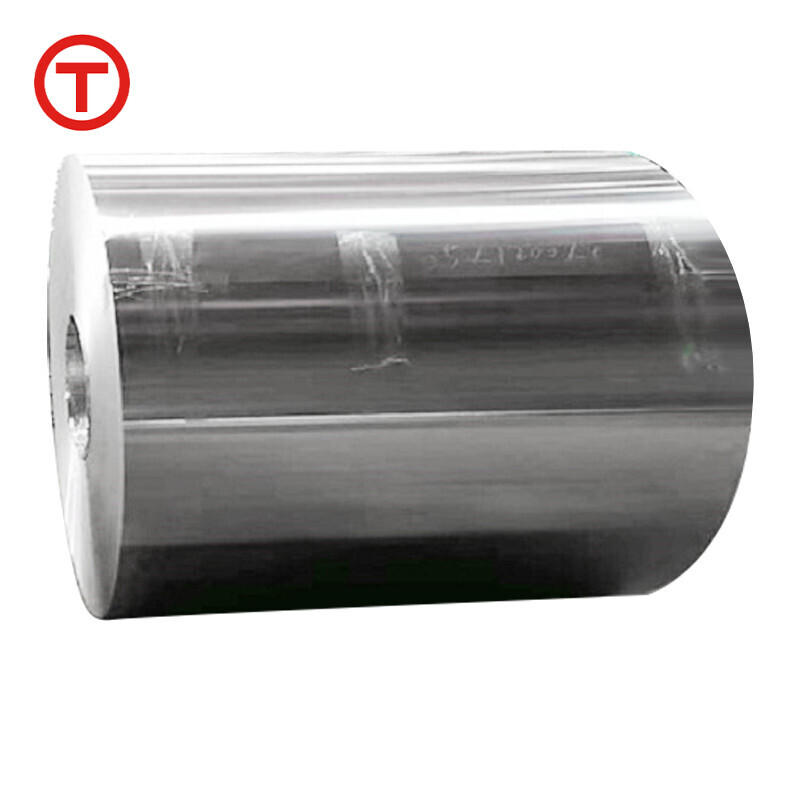

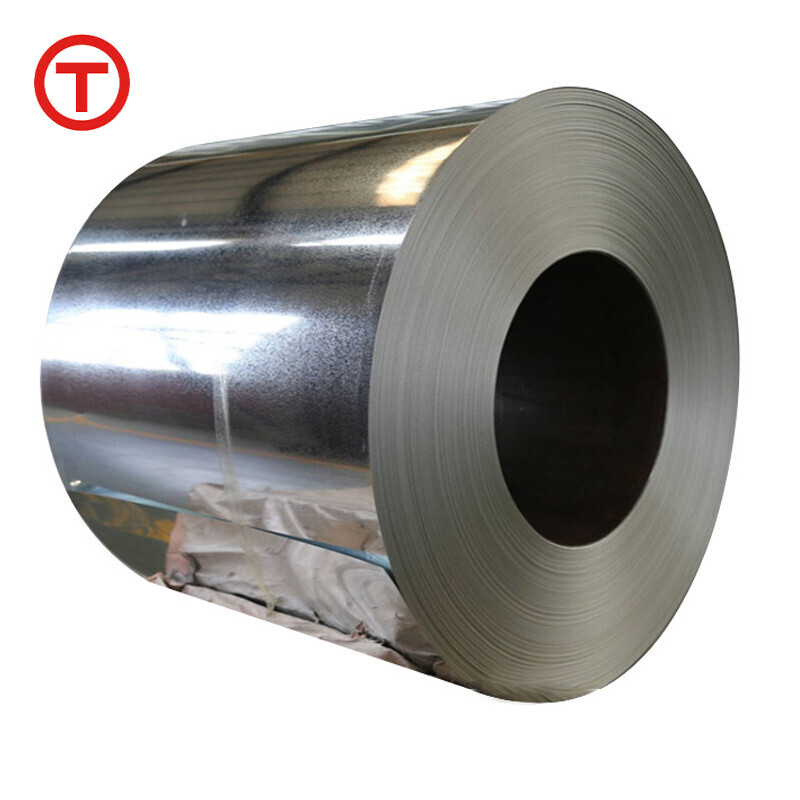

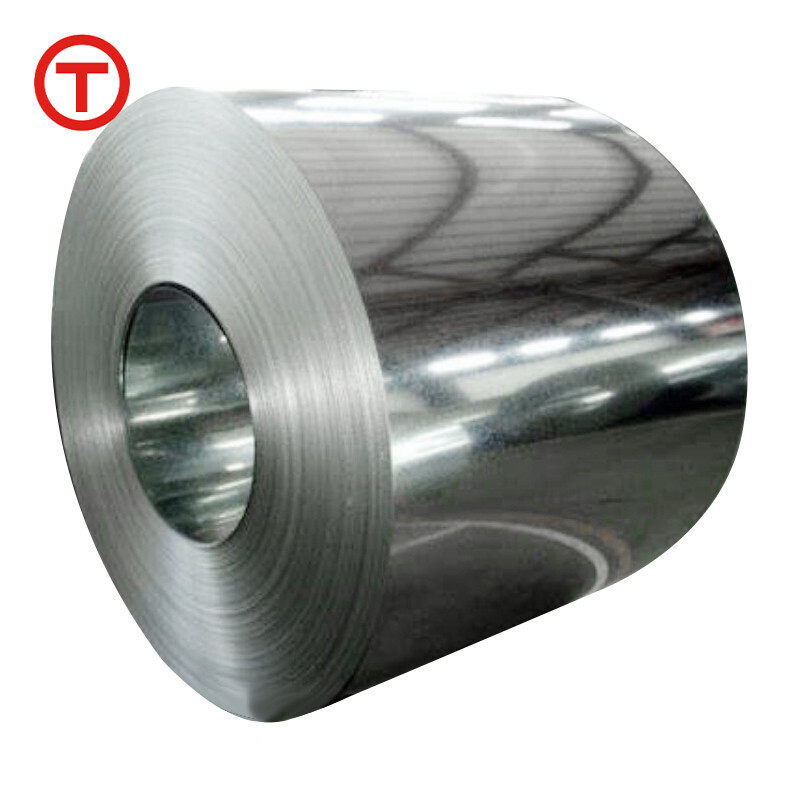

‌Galvanized Steel Coil
The galvanized steel coil, after undergoing galvanizing treatment on its surface, presents a unique, smooth, flat and magnificent star-shaped pattern, with a base color of silver-white. The special coating structure gives it excellent corrosion resistance.
Contact Us
Classification
Galvanized Steel
Product Consulting

◉ Product Description

The galvanized steel coil, after undergoing galvanizing treatment on its surface, presents a unique, smooth, flat and magnificent star-shaped pattern, with a base color of silver-white. The special coating structure gives it excellent corrosion resistance.
Technical StandardEN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel GradeDx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm, according to customer's requirement
Type of CoatingHot Dipped Galvanized Steel(HDGI)
Zinc Coating30-275g/m2
Surface TreatmentPassivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface StructureNormal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
QualityApproved by SGS,ISO
ID508mm/610mm
Coil Weight3-20 metric ton per coil
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export marketEurope, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc

Performance Characteristics

Product surface is smooth, no steel slag and burr.

The product size is controllable and can be adjusted according to customer requirements.

Good mechanical properties, with good weldability and formability.

Strong corrosion resistance, effective resistance to air, water and chemicals, suitable for harsh environments.

Can provide quality inspection certificate, and the company has ISO, CE, SGS multiple product certification.

Detailed Parameters

TrademarkChemical composition, %, not more thanYield StrengthTension strengthElongation

CSiMnPSTiReL/MpaRm/MpaA80mm/%
DX51D+Z0.120.50.60.10.0450.3
270~500≥22
DX52D+Z0.120.50.60.10.0450.3140~300270~420≥26
DX53D+Z0.120.50.60.10.0450.3140~260270~380≥30
DX54D+Z0.120.50.60.10.0450.3120~220260~350≥36
DX56D+Z0.120.50.60.10.0450.3120~280260~350≥39
DX57D+Z0.120.50.60.10.0450.3120~170260~350≥41
S280GD+Z0.20.60.70.10.045
≥280≥360≥18
S320GD+Z0.20.60.70.10.045
≥320≥390≥17
S350GD+Z0.20.60.70.10.045
≥350≥420≥16

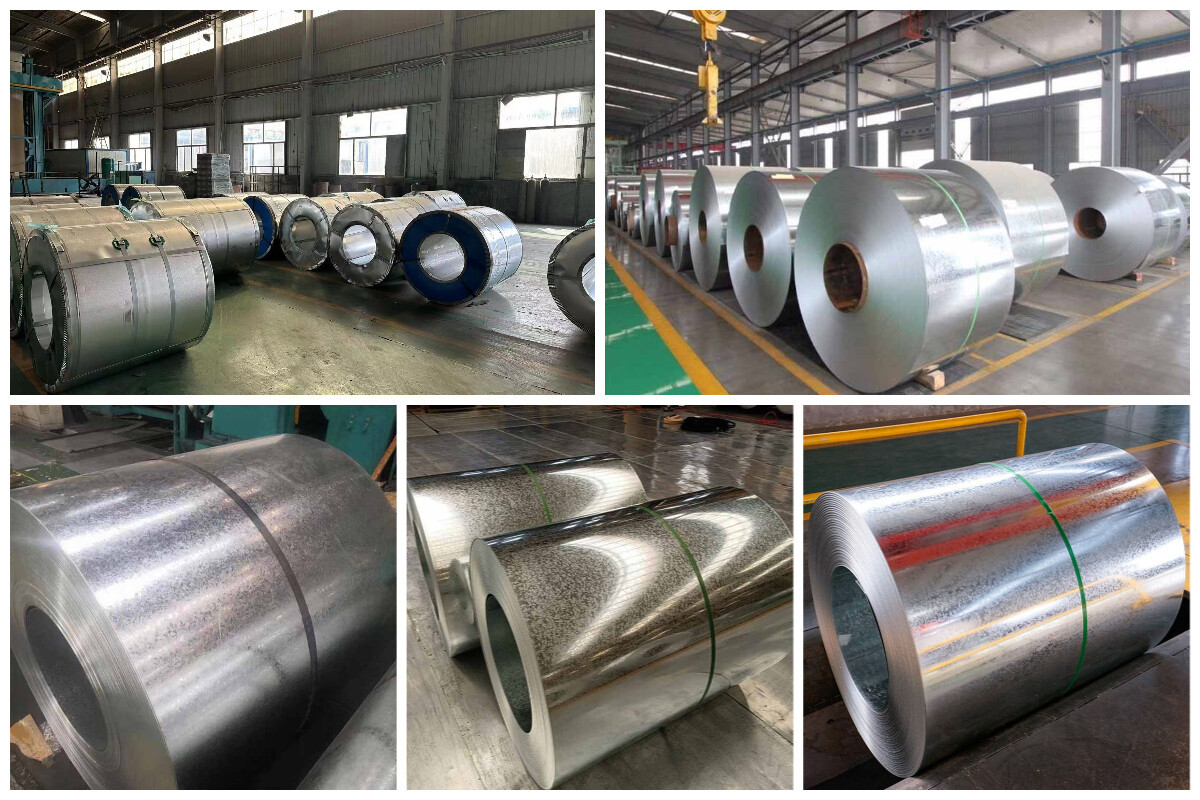

◉ Product Show


◉ Product Packaging

Standard Export Seaworthy Package (Waterproof paper, and steel strip packed).Suit for all kinds of transport,or as required.Every cartons loaded with good shoring and strengthening.Use 6m loaded by 20ft container, 12m loaded by 40ft container.we will take container loading pictures and seal the container.Transportation speed is quick. And keep customer eachstep informed.

  • 52320f0da87761415121c466640c9a98.png
  • 48e1bc45443d10664bd72c5063f07b83.jpeg
  • b4c755562de7db6db16da11de4ba0651.jpeg
  • 234154eaf1587e4aa73a864bcccd6ab3.jpeg
  • 微信图片_20230323160104.jpg
  • 微信图片_20230323160055.jpg
  • 623f350e77e39bf5c0271bed4fd48db.jpg
  • 30bbef0cf1a1325380ba8e05455429a.jpg

◉ Application

  • 不锈钢应用 (1).jpg
  • 不锈钢应用 (1).jpeg
  • 碳钢应用 (3).jpg
  • 碳钢应用 (2).jpg
  • 镀锌应用 (3).jpg
  • 镀锌应用 (2).jpg
