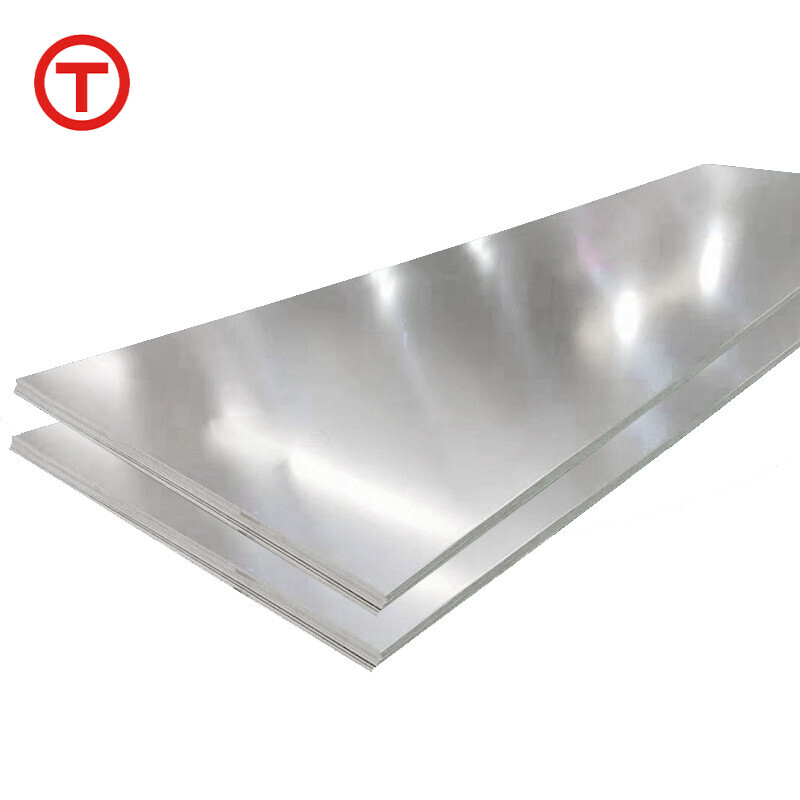

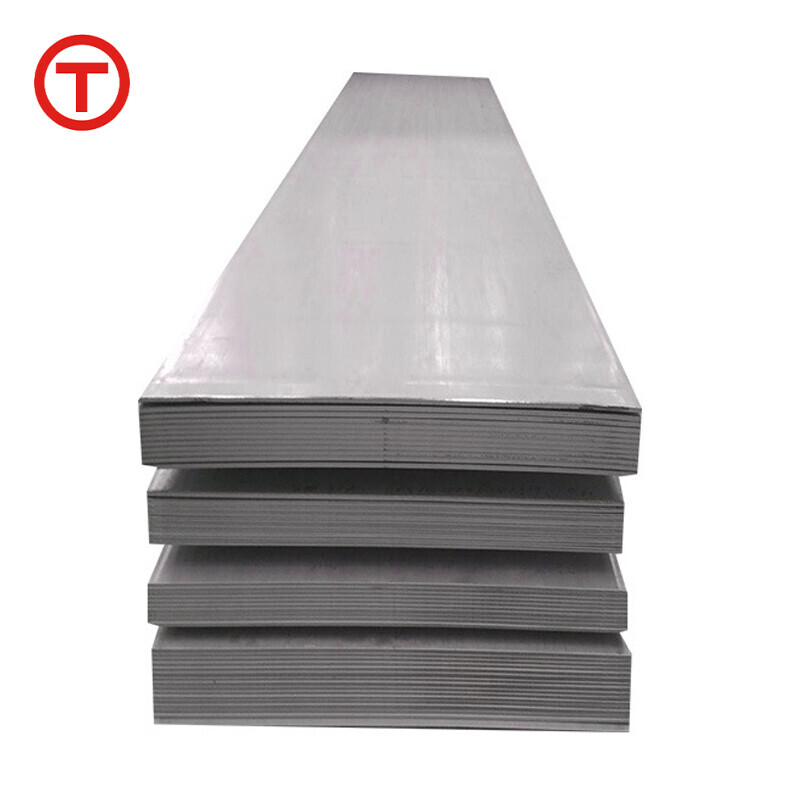

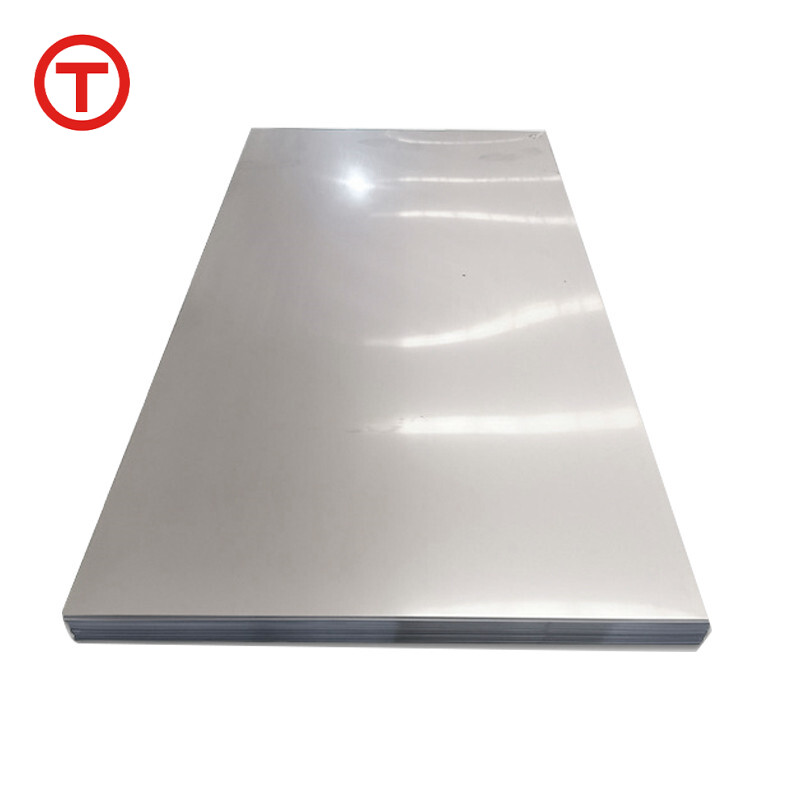

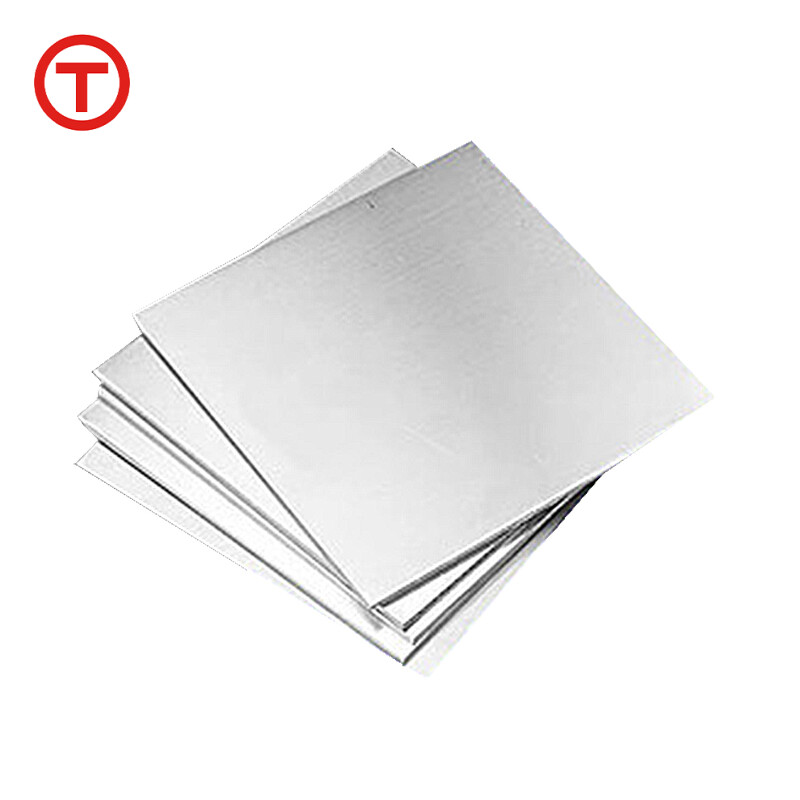

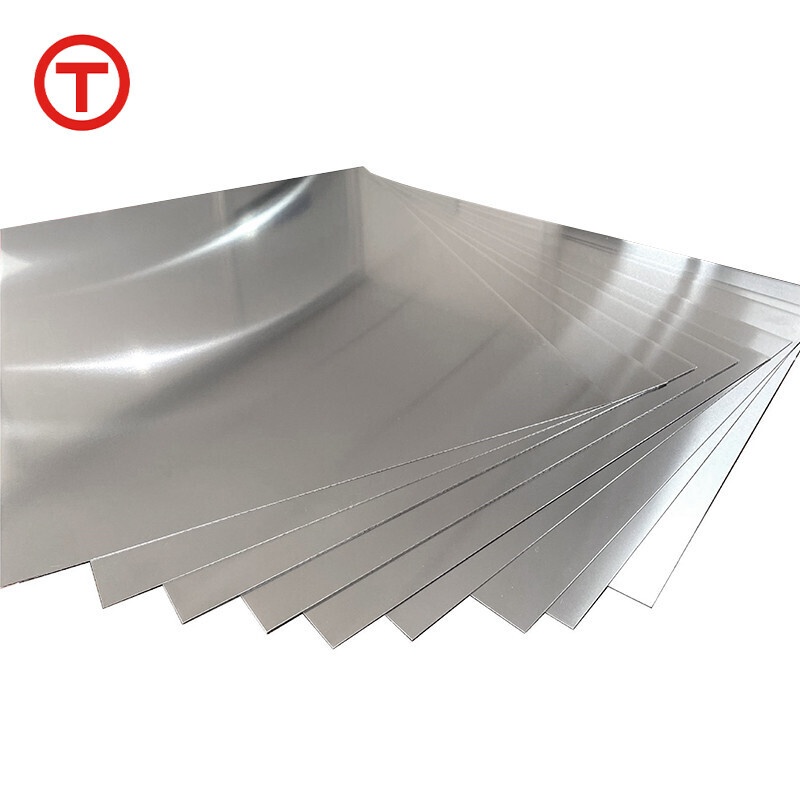

Stainless Steel Plate

Stainless Steel Plate
‌stainless steel plate has high plasticity, toughness and mechanical strength, while resistant to acid, alkaline gas, solution and other media corrosion ‌‌. The surface of stainless steel plate is smooth and can resist the corrosion of atmosphere, steam and water. It is widely used in chemical industry, medicine, construction, vehicles, kitchenware and other fields ‌
Contact Us
Classification
Stainless Steel
Product Consulting

◉ Product Description

‌stainless steel plate has high plasticity, toughness and mechanical strength, while resistant to acid, alkaline gas, solution and other media corrosion ‌‌. The surface of stainless steel plate is smooth and can resist the corrosion of atmosphere, steam and water. It is widely used in chemical industry, medicine, construction, vehicles, kitchenware and other fields ‌
Product   NameStainless Steel Plate
StandardGB、ASTM、JIS、EN、GB/T3280-2009、GB/T4237-2009、GB/T4238-2009、GB/T3280-2007、GB/T4237-2007、JIS G4304-2005
Material201、202、303、304、304L、309S、310、310S、314、316、316L、630、840、904L and so on
Length1000-6000mm
Width1000-2000mm or customized
Thickness0.1-60mm
Surface FinishBA、2B、No.1、No.3、N0.4、8K、HL

Performance Characteristics

Product surface is smooth, no steel slag and burr.

The product size is controllable and can be adjusted according to customer requirements.

Good mechanical properties, with good weldability and formability.

Strong corrosion resistance, effective resistance to air, water and chemicals, suitable for harsh environments.

Can provide quality inspection certificate, and the company has ISO, CE, SGS multiple product certification.

Detailed Parameters

Compositionnominal wt%Elongation %Hardness
301 Annealed 1/4H 1/2H FHC .15, Mn 2.0, P .045, S 0.3, Si .75, Cr 16-18, Ni 6-8, N .14095 Rb
302C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .14092 Rb
303C 0.15, Mn 2.0, P .045, S .03, Si .75 Cr 17-19, Ni 8-10, N .130-5092 Rb
304C .08, Mn 2.0, P .045, S .03, Si .75 Cr 18-20, Ni 8-10.5, N .104092 Rb
304LC .03, Mn 2, P .045, S .03, Si .75, Cr 18-20, Ni 8-12, N .14092 Rb
305C .12, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 10.5-13,4088 Rb
309/309SType 309 - C .2, Mn 2.0, P .045, S.03, Si .75 Cr 22-24, Ni 12-15, Fe bal Type 309S - C .08,49/ 44.6-
Mn 2.0, P .045, S .03, Si. 75, Cr 22-24, Ni 12-15, Fe Bal
310LMn 1.10, Cr 24.5, Ni 20.5 (nominal)4095 Rb
310 310S310: C .25, Mn 2, P 0.045, S 0.03, Si 1.5, Cr 24-26, Ni 19-22, Fe balance 310S: C 0.08, Mn 2,45/42/6-
P 0.045, S 0.30, Si 1.5, Cr 24-26, Ni 19-22, Fe balance
316C .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N .1, Fe Bal4095 Rb
316LC .03, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P .045, S .03, N 0.1, Fe Bal5495 Rb
316TiC .08, Mn 2.0, Si .75, Cr 16-18, Ni 10-14, Mo 2-3, P 0.045, S 0.03, N 0.1, Ti 0.15-0.70, balance Fe24876 Rb
317Type 317 - C .08, Mn 2.0, Si .75, Cr 18-20, Ni 11-15, Mo 3-4, P .045, S .03, N .10, Fe Bal3595 Rb
321C .09, Mn 2.0, P .045, S .03, Si .75, Cr 17-18, Ni 9-12, Ti .7, N .1 Fe Bal4095 Rb
334C 0.03, Mn 1.0, P .02, S .015, Si .75, Cr 19-19.5 Ni 19-20, Ti .4, Al .4, Cu .2 Fe Bal4082 Rb
347C .08, Mn 2.0, P .045, S .03, Si .75, Cr 17-19, Ni 9-13, Cb+Ta 1.0, Fe Bal4095 Rb
348C .08, Mn 2.0, P .045, S .03, Si.75, Cr 17-19, ni 9-13, Cb+Ta 1.0, Ta .10, Co .2, Fe Bal4092 Rb
410C .15, Mn 1.0, Si 1.0, Cr 11.5-13.5, Ni 0.5, S .03, Ph .043438-45 Rc
416C 0.15, Mn 1.25, Si 1.0, Cr 12-14, P 0.06, S 0.15, Mo 0.60, Fe Balance15-30
420C .15-.40, Mn 1.0, Si 1.0, Cr 12-14, Ni 0.5, S .03, Ph .0415-3053-57 Rc
440AC .60-.75, Mn 1.0, Si 1.0, Cr 16-18, Mo .75, Ni .50, S.03, Ph .042057-60 Rc
440CCr 16.5, C 1.0, Si 1.0-58 Rc
13-8 MoCr 13, Ni 8, Mo 2, Al, low C, balance Fe1833 Rc
15-5PHCr 15, Ni 5, Cu 3, Cb, balance Fe1033 Rc
15-7MoCr 15, Ni 7, Mo 2, AL 1, balance Fe3088 Rb
17-4PHCr 17, Ni 4,Cu 3, Cb, balance Fe833 Rc

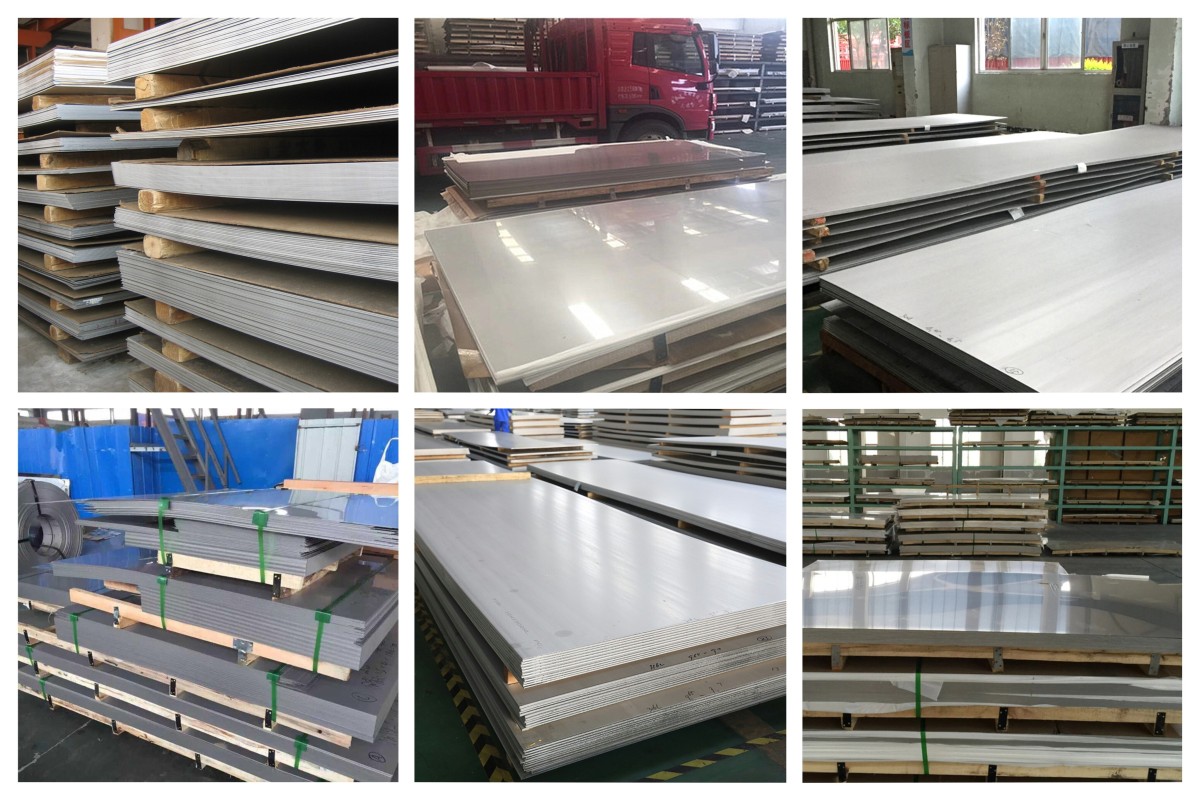

◉ Product Show


◉ Product Packaging

Standard Export Seaworthy Package (Waterproof paper, and steel strip packed).Suit for all kinds of transport,or as required.Every cartons loaded with good shoring and strengthening.Use 6m loaded by 20ft container, 12m loaded by 40ft container.we will take container loading pictures and seal the container.Transportation speed is quick. And keep customer eachstep informed.
